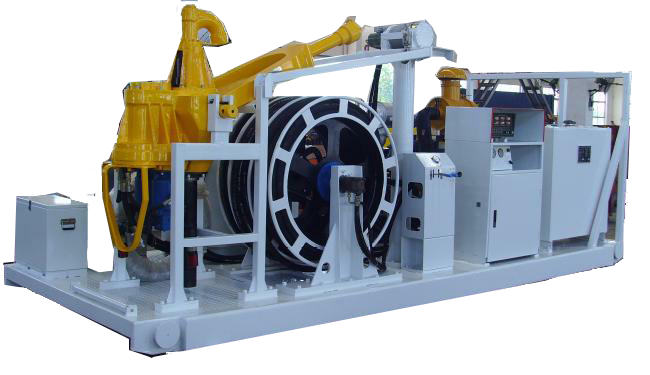

Power Swivel
Power Swivel is the device installing on the derrick of servicing rig, to provide rotating power.
Except the use for such workover jobs as casing milling, milling, drilling cement plug and bridge plug and fishing, it is also used for sidetracking drilling, drilling open hole and coring.
The product is designed and manufactured according to API 8C specifications.
Model | DSL-85 | DSL-110 | DSL-135 | |
Max.static load | KN | 850 | 1100 | 1350 |
US ton | 94 | 120 | 150 | |
Dynamic load rating | KN | 450 | 600 | 1080 |
US ton | 50 | 65 | 120 | |
Max.speed | 155 | 150 | 150 | |
Max.pressure | Mpa | 35 | 35 | 35 |
psi | 5000 | 5000 | 5000 | |
Max.torque | N.m | 5400 | 8450 | 16000 |
ft.lbf | 3980 | 6300 | 11800 | |
Gooseneck connection | NPT2 1/2 | 3LP | 3LP | |
Sub connection | 2 7/8IF | 3 1/2IF | 3 1/2IF | |
Size | mm | 2361x953x865 | 2361x953x865 | 2480x1180x950 |
in | 93x37.5x34 | 93x37.5x34 | 97.5x46.5x37.5 | |
Weight | kg | 910 | 910 | 1400 |
lb | 2000 | 2000 | 3080 | |
