Multi-function Drilling Rig

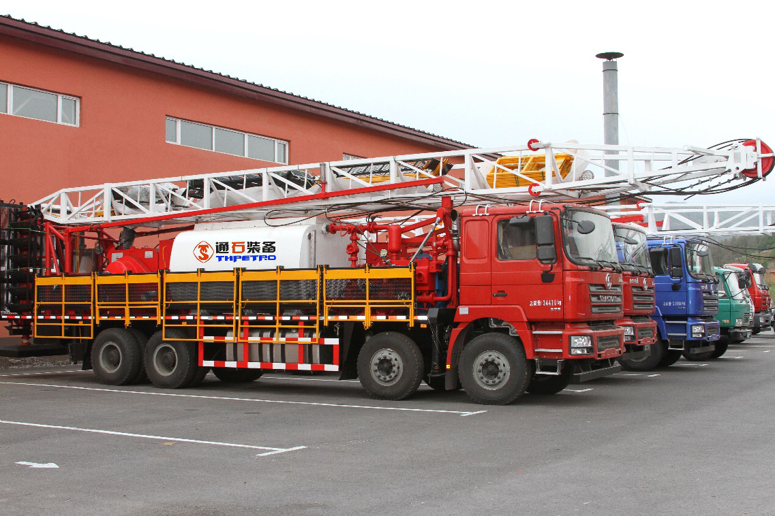

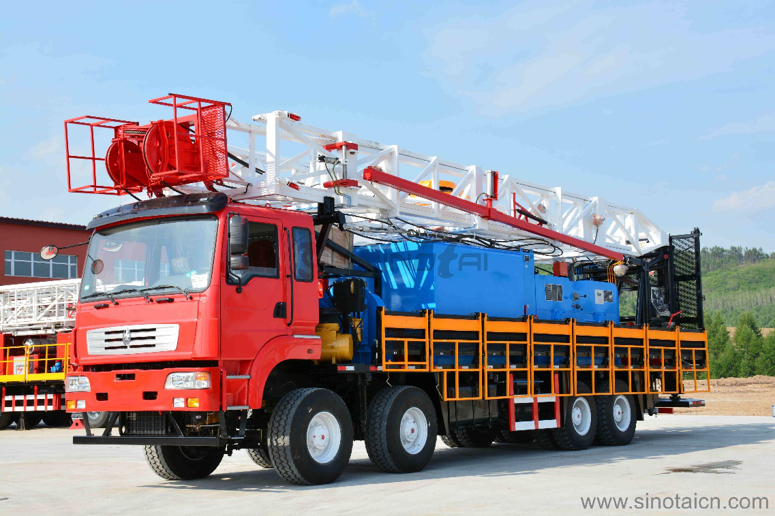

The flushby rig is a multifunctional equipment mainly used for well flushing and sand washing in thick oil well, and performing quick workover service of shallow/thick oil well. It is the next generation of service machine that outperforms service unit, pump truck and crane truck working together.
Highlights:
Flushby rig can substitute the crane, flush truck, pump truck in sand washing work of heavy oil well in rotary screw pump type. It can also work as a light and efficient small workover rig. It is a true all in one complex unit. .
The mast is equipped with long diagonal draw bar to open and shut automatically, which makes the rig not only facilitate horizontal drilling, but also function on a well slanted at a 45 degree angle.
Technical parameters | FBU22.5 | FBU30 | FBU40 | FBU60 |
Rated hook load(kN) | 225 | 300 | 400 | 600 |
Mast Height(m) | 17/18 | 17/18 | 18/22 | 18/22 |
Max. Static Hook Load(kN) | 360 | 400 | 500 | 700 |
Traveling System | 2×3 | 2×3 | 3×4 | 2×3 |
Triplex Pump Input Power (kW) | 135 | 145 | 145 | 145 |
Triplex Pump Water Power (kW) | 118 | 130 | 130 | 130 |
Triplex Pump Max. Pressure(MPa) | 35 | 35 | 35 | 35 |
Max. Working Pressure(MPa) | 0.6 | 0.6 | 0.6 | 0.6 |
Tank Volume(m3) | 8 | 9 | 9 | 6 |
Tank working temperature(℃) | 0—40 | 0—40 | 0—40 | 0—40 |
Tank Suitable Media Temperature(℃) | 0—120 | 0—120 | 0—120 | 0—120 |
Moving dimension (length x width x height)( m) | 15.40x2.50x4.10 | 13.40x2.76x4.10 | 15.40x2.76x4.10 | 13.00x2.60x4.30 |
Chassis | self-propelled chassis/ second-class chassis | self-propelled chassis/ second-class chassis | self-propelled chassis/ second-class chassis | self-propelled chassis |
