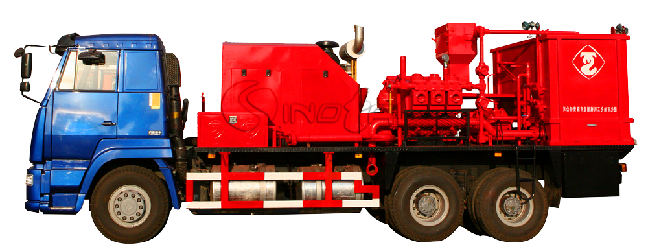

Cementing Truck
Cementing truck adopts second class automotive chassis, equipped with chassis, engine, transmission, plunger pump, water tank, suction manifold, discharge manifold and electric system.
This truck mainly used for well cementing operation in oilfield. It can also perform well killing, sand washing, well flushing, and mud recovery operation.
Item | Cementing truck | |
Triplex pump Max. working pressure | Mpa | 40 |
Triplex pump Max. discharge | L/min | 905 |
Water tank capacity | L | 4000, 2 chamber（inner anti-corrosion insulation） |
Triplex pump inlet size | In | 4 |
Triplex pump outlet size | in | 2 |
Mud density | 1.3-2.2 | |
Mud treatment capacity | L/min | 1200 |
Overall dimensions（L x W x H） | m | 9.30x2.50x3.36 |
Weight | Kg | 20500 |
Chassis engine power | Kw | 219 |
Engine model | WP12G430E310 | |
Engine rated model | Kw/r/min | 316/1800 |
Triplex pump type | Horizontal single acting triplex plunger pump | |
Triplex pump power | kw | 214 |
Chassis | Steyr chassis | |
