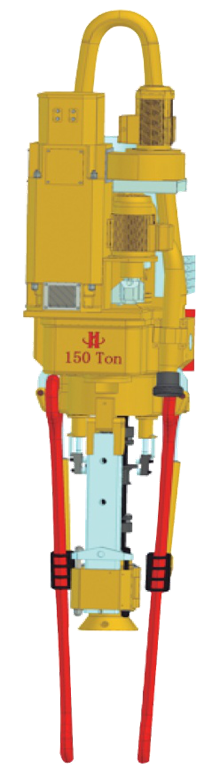

Top Drive Unit
The TS-SINOTAI Hydraulic & AC motor powered TDU system features a compact design and rapid installation.
It is suitable for installation on both smaller and big rigs.
This system is driven by Hydraulic or VFD control system resulting in a greater range of torque speed capacity.
Other system components include an integrated swivel, bi-directional link tilt system, remote and manual blowout preventer valves, a backup clamp and a guide beam, etc.
Model | DQ-20-B Electric | DQ-20-YA Hydraulic | DQ-40-B Electric (4-1/2’’&5’’DP) | DQ-40-BQ Electric (4-1/2’’&5’’DP) | DQ-40-YA Hydraulic (4-1/2’’&5’’DP) | DQ-50-B Electric (4-1/2’’&5’’DP) | DQ-70-BS Electric (4-1/2’’&5’’DP) | DQ-70-BSQ Electric (4-1/2’’&5’’DP) | DQ-90-BS Electric (4-1/2’’&5’’DP) |
Rated Drilling Depth (ft) | 6561 | 6561 | 13213/ 10500 | 13213/ 10500 | 13213/ 10500 | 16404/ 15000 | 22960/ 19680 | 22960/ 19680 | 29520/ 24600 |
Rated Load (ton) | 150 | 150 | 250 | 250 | 250 | 350 | 500 | 500 | 750 |
Power Supply | 600V AC 60/50HZ | 460V AC 60/50HZ | 600V AC 60/50HZ | 600V AC 60/50HZ | 460V AC 60/50HZ | 600V AC 60/50HZ | 600V AC 60/50HZ | 600V AC 60/50HZ | 600V AC 60/50HZ |
Rated Current (A) | 330 | 330 | 415 | 465 | 400 | 465 | 405*2 | 465*2 | 540*2 |
Max. Current (A) | 445 | 623 | 700 | 700 | 607*2 | 700*2 | 810*2 | ||
Rated Power(Continuous) (kW) | 250 | 300 | 315 | 375 | 400 | 375 | 315*2 | 375*2 | 450*2 |
Rotary Speed (rpm) | 0~180 | 0~180 | 0~180 | 0~180 | 0~180 | 0~180 | 0~230 | 0~220 | 0~180 |
Drilling Torque (kN.m) | 26 | 25 | 33 | 40 | 35 | 40 | 55 | 65 | 76 |
Max. Breakout Torque(kN.m) | 39 | 35 | 50 | 60 | 49 | 60 | 82 | 100 | 120 |
Backup Tong Range (ft) | 3-1/2~8-1/2 | 3-1/2~8-1/2 | 3-1/2~8-1/2 | 3-1/2~8-1/2 | 3-1/2~8-1/2 | 3-1/2~8-1/2 | 3-1/2~8-1/2 | 3-1/2~8-1/2 | 3-1/2~9 |
Hydraulic System Working Pressure (psi) | 2320 | 5000 | 2320 | 2320 | 5000 | 2320 | 2320 | 2320 | 2320 |
Rated Pressure of IBOP (psi) | 10K | 10K | 10K | 10K | 10K | 10K | 10K | 10K | 10K |
Center Pipe ID (in) | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 | 2-1/2 | 3 | 3 | 3 | 3-1/2 |
Rated Circulation Pressure (psi) | 5K | 5K | 5K | 5K | 5K | 5K | 5K | 5K | 5K |
Max. Distance Between shaft center and the end of guide (mm) | 463 | 463 | 570 | 570 | 563 | 700 | 925 | 930 | 1000 |
Main body Height (mm) | 4400 | 4400 | 4800 | 4800 | 4000 | 5200 | 5600 | 5600 | 5700 |
Main body Weight (ton) | 6.5 | 5 | 8.5 | 8.5 | 5.5 | 10.5 | 12.5 | 13 | 14 |
Main body dimension (mm) | 4050*910* 1122 | 3600*950* 1050 | 4800*1258* 1235 | 5200*1495* 1444 | 4000*1140* 1090 | 5200*1495* 1444 | 5600*1400* 1500 | 5600*1560* 1520 | 5700*1900* 1750 |
