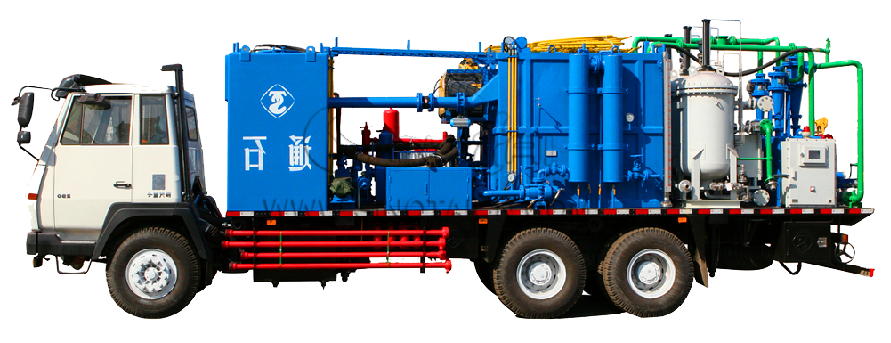

Flushing Fluid Truck
Flushing fluid truck is truck-mounted environmental friendly water treatment device for injection well circulating flushing and re-injection which is designed and developed for oilfield injection well flushing fluid treatment, has the function of circulating flushing with pressure and online backwash.
Convenient operation, superior performance. The product can be used to purify the returned fluid of the water injection well when flushing.
After removing the suspended mix, oil and other pollutants, re-inject the fluid to well, and carry out the closed-loop washing well.
Dissolved air system of the oil removal process is applied, it is different from traditional air flotation process, operation control is simple, stable and high separation efficiency, treatment effect is good, oil removal rate can reach above 95%.
Item | Flushing fluid truck | ||
Max. Flushing pressure | MPa | 35 | |
Max. Flushing flow | M3/h | 30 | |
Relief valve working pressure | MPa | ≤25 | ≤35 |
Single device working time | h | 3-4 | |
Treating water temperature | ℃ | ≤80 | |
Working environment temperature | ℃ | ≥-5 | |
Suitable medium | mg/l | oil content≤3000; suspension content≤3000 | |
Water quality after treating | mg/l | oil content≤10; suspension content≤10 | |
Total weight | kg | 25000 | 31000 |
Overall dimension in carrying state(length×width×height) | m | 10.3×2.50×3.80 | 11.40×2.50×3.80 |
Carrier type | Styer | JINHUA YO-MAN | |
