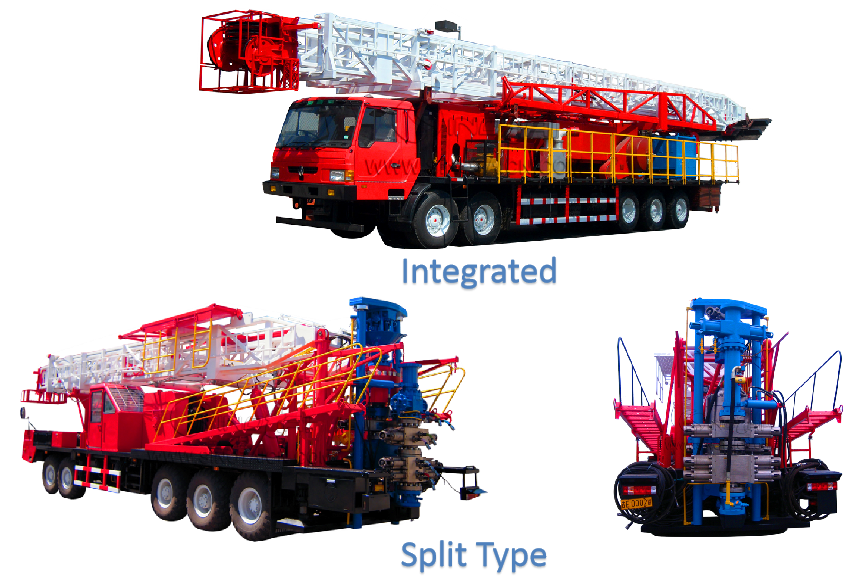

Integrated Snubbing Unit
The integrated snubbing unit what is developed independently by TS is a combination of workover rig and BOP snubbing unit device. It save the high cost of moving equipment.
Outstanding feature:
Reduce fuel consumption, save energy ,highly cost effective.
The lifting structure of driller’s room is designed specially, easily to operate and reduce the drillers’ working strength.
The tubing coupling’s semi-seal ram BOP in wellhead device is replaced with the quick BOP. It will save the time of changing the semi-seal ram, and save the steps of disassembling cylinder. So it eliminate the leakage of hydraulic oil problem
Since the integrated snubbing unit is produced, through the continuous innovation and continuous improvement, the technology of the fifth generation model lead in the domestic market. It is the workover device of high effective and multi function ,low carbon and environmental protection.
Model | XJ700/XJ900 (Integrated) | XJ700(40T) (Split) | |
Rated hook load | kN | 400/600 | 400 |
Max. hook load | kN | 675/900 | 675 |
Service depth | m | 3200/4000 | 3200 |
Wellhead static seal pressure | Mpa | 21/35 | 21 |
Mast height | m | 24 | 24 |
Lifting hydraulic cylinder stroke | m | 3.35 | 3.6 |
Max. down press force | kN | 300 | 300 |
Max. up lifting force | kN | 500 | 500 |
Max. running tool length | m | 1.8 | 1.8 |
Drift dia. of system | mm | 186 | 186 |
Min turning radius | m | 19.5 | 19.5 |
Max. speed of lifting cylinder up force | m/s | 0.31 | 0.31 |
Max. speed of lifting cylinder down force | m/s | 0.49 | 0.49 |
Overall size(L*W*H) | M | 17.2*3.1*4.36 | 13.7*2.5*4.3 |
Type of chassis | Self-propelled | Second class | |
