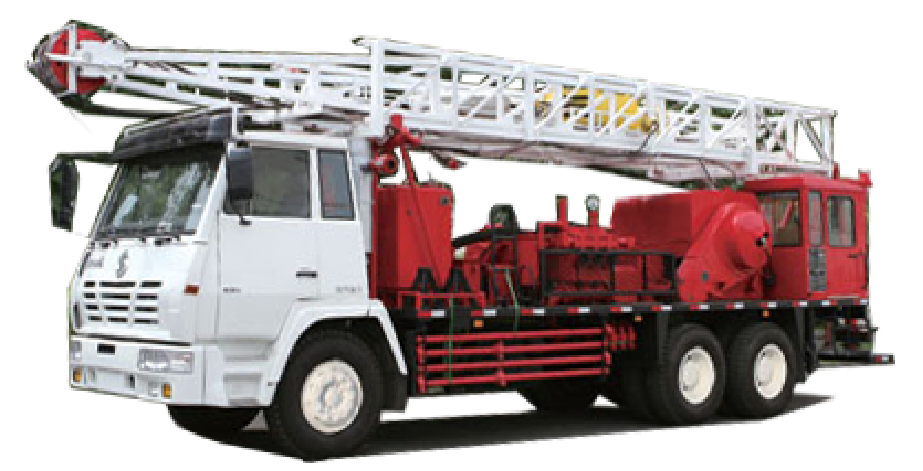

Flushing & Workover Rig
The flushing and workover rig is a special equipment for oil and mine filed which merge with flushing and workover.
It is composed of steyr second chassis, transfer case, hydraulic torque converter, triplex plunger pump, revert reducer, draw works, mast, traveling block, hydraulic system, air system etc.
The engine is fitted with governor for all the way, the power of engine is passed to transfer case through transmission shaft.
Then transfer case pass the power to rear axle of truck, revert reducer and triplex plunger pump. So it can realize the function of truck moving, workover and flushing.
The transfer case can drive the hydraulic pump, supply the oil to hydraulic system.
Contact Us
Model | XJ600(30T) | |||
Workover depth | Service depth | 73mm(2 7/8”) EUE tubing | m | 2600 |
Rated load | kN | 300 | ||
Max. hook load | kN | 585 | ||
Mast height | m | 17 | ||
Working pressure of hydraulic system | MPa | 14 | ||
Working pressure of air system | Mpa | 0.65-0.8 | ||
Max. pressure of triplex pump | MPa | 35 | ||
Max. displacement of triplex pump under the max. pressure | L/min | 173 | ||
Overall size(L*W*H) | m | 11.04*2.50*3.96 | ||
Total weight | Kg | 25000 | ||
