Product display

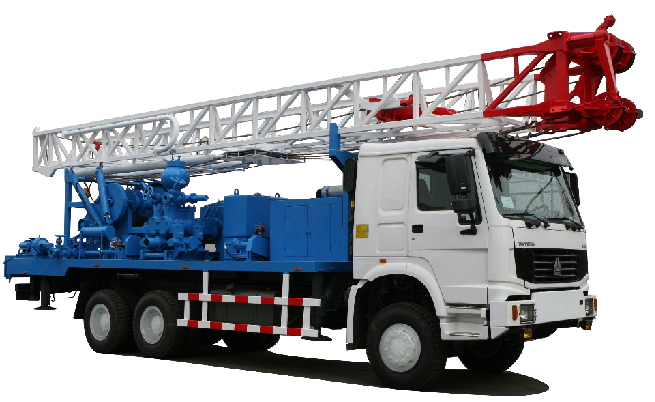

Water Well Drilling Rig
Our company supply water well drilling rig(rotary table，power head) to meet the process below:
1) Mud circulation
2) Mud reverse cycle
3) DTH-hammer
5) Gas lift reverse circulation(without completely broken to improve drilling efficiency)
6) Liquid-hammer(without air compressor), engineering drilling rig, agricultural machinery and other machinery and equipment.
Dedicated to providing users with the most suitable for the actual use of the equipment. And has a strong design capacity. Custom products can be implemented at no extra cost.
We insist on comparing with similar products at home and abroad, and always guarantee the advanced nature of our products.
Model | TSW-350 | TSW-450 | TSW-600 | TSW-1000 | TSW-1500 | |
Drilling depth,m | 300-380 | 450-500 | 600-670 | 1000-1200 | 1500 | |
Bore diameter,mm | 505-2000 | 505 | 505 | 550 | 650 | |
Mast height,m | 15 | 8 | 12 | 15 | 15 | |
Max load of mast,t | 30 | 40 | 50 | 60 | 70 | |
Drill pipe length,m | 6/9 | 6/9 | 6/9 | 6/9 | 6/9 | |
Type | Mechanical power head | Hydraulic power head | Mechanical power head | Rotary table | Rotary table | |
Rotation form | Torque, Nm | Forward: 15000/5530/3376/2113/1361 Reverse: 8965 | Forward: 10000/5530/3376/2113/1361 Reverse: 8965 | Forward: 10000/5530/3376/2113/1361 Reverse: 8965 | Forward: 10000/5530/3376/2113/1361 Reverse: 8965 | Forward: 10000/5530/3376/2113/1361 Reverse: 8965 |
Speed, rpm | Forward: 26/47/77/123/191 Reverse: 29 | Forward: 26/47/77/123/191 Reverse: 29 | Forward: 26/47/77/123/191 Reverse: 29 | Forward: 27/49/80/131/208 Reverse: 35 | Forward: 27/49/80/131/208 Reverse: 35 | |
Pull up-Pull down cylinder | Pull down, t | 20 | 7 | 7 | 15 | 45 |
Pull up, t | 20 | 20 | 30 | 30 | 30 | |
Pull up speed,m/sec | 0.12 | |||||
Wire rope diameter, mm | 14 | |||||
Hydraulic hoist | Model | ZYJ2B | ZYJ3B | Hook load：7T×6=42T | Hook load：10T×6=60T | |
Single rope lifting force, T | 1 | 1 | 3 | Tool hoist Single rope pull up：1T | Tool hoistSingle rope pull up：1T | |
Mud pump | Model | BW600/30×2 | BW900/25 | BW1100/50 | BW1500/12 | BW1500/12 |
Flow, L/ min | 600 | 1050 | 1100 | 1500 | 1500 | |
Pressure, MPa | 3 | 2.5 | 5 | 12 | 12 | |
Diesel engine | WEICHAI DEUTZ 108KW | WEICHAI DEUTZ 144KW | WEICHAI DEUTZ265KW | WEICHAI DEUTZ265KW | ||
