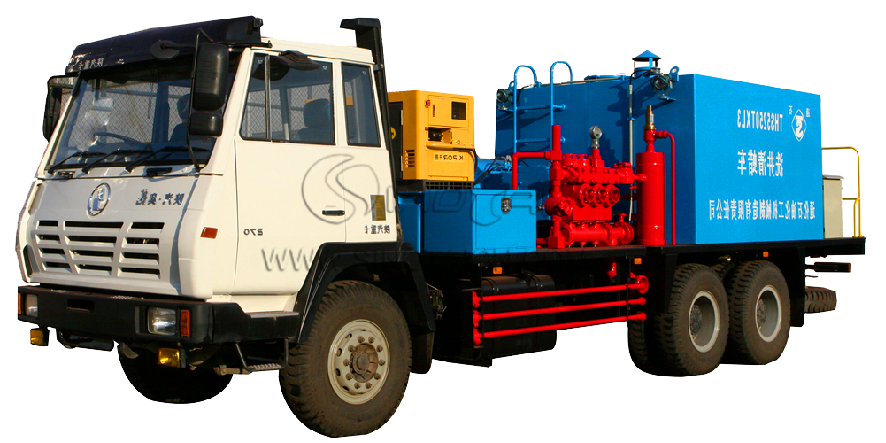

Flushing and Dewaxing Truck
It is composed of steyr chassis, triplex plunger pump, water pump(imported from Italy),horizontal boiler etc.
It is mainly used in flushing, sand washing and dewaxing the oil pipeline. Using hot water or steam to clean the wax on tubing’s the inner and outer wall and casing’s inner wall, also the pipeline on the ground .
It realizes to test pressure, dredge surface pipeline, cold & hot flush well, dewax(hot water, hot oil or steam),specially suitable for oilfield operating in low temperature area.
Item | Flushing & Dewaxing truck | |
Max. working temp. of steam | ℃ | 260 |
Max. working pressure of steam | MPa | 5.5 |
Max. working temp. of hot flushing | ℃ | 160 |
Max. working pressure of hot flushing | MPa | 20 |
Max. working pressure of flushing | MPa | 35 |
Drive type of chassis | 6×4 / 4×2 | |
Power of Chassis’ engine | Kw/ r/min | 199/2200 |
Power of generator unit | Kw | 15 |
Current of generator unit | A | 23.5/26.4 |
Power of burner | Kw | 1.5 |
Overall size(L*W*H) | m | 10.35*2.5*3.25 |
Total weight | Kg | 24000 |
Type of chassis | Steyr | |
