Product display

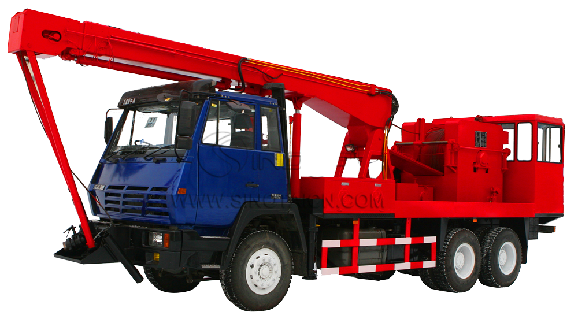

Front Aligned Oil Recover Truck
Front aligned bailing oil truck is commonly known as "front bailing", which is mainly used for bailing oil from the wells that is on the edge of the oil field, low yield or inconvenient to lay the oil pipe.
No need of ground guy line, the mast can stand up conveniently and quickly, the drum wire rope is arranged neatly, the drum line is controlled in the control room, other controls are all in the driving cab.
Item | Front aligned bailing oil truck | |
Drum load | m | 2500 |
Steel wire line OD. | mm | 16 |
Maximum hoisting load | KN | 30 |
Steel wire line hoisting speed | m/s | ≦4(when drum rope have biggest OD.)≦1.5(when drum rope have smallest OD.) |
Mast max. length | m | 8.3 |
Mast max. lifting angle | ° | 45 |
Carrier engine power | KW/r/min | 213/2200 |
Driving type | 6×4 | |
Max. pump depth | m | 2450 |
Barrel oil pump submergence | m | ≦200（5 1/2’’casing） |
Hydraulic system working pressure | MPa | ≦12 |
Rope way | Manual | |
Carrier type | Styer | |
