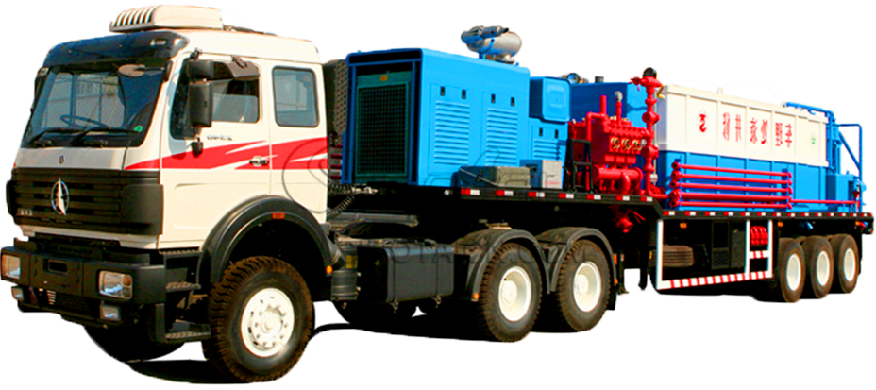

Sand Washing Truck
Sand washing truck is oilfield special flushing device.
Oil, water and sand mixture after being processed, two stage cyclone desander can discharge 99% sand at specified location, oil/water separation system will recycle more than 80% crude oil.
At the same time triplex plunger pump can realize the water cycle flushing.
The device can be used to recycle crude oil in various mixtures with high effectiveness, reduce the operation use water greatly, and realize energy-saving and environmental protection.
Item | 400 Typesand washing truck | 300 Typesand washing truck | ||
Working pressure | MPa | 40 | 35 | |
Sand washing liquid volume | m3/h | 90 | 60 | |
Sand removal rate | 90-99% | |||
Oil recovery rate | ≥80% | ≥80% | ||
Engine for truck | Mannheim TBD234V6 | SC9DF290Q4 | D10.34-40 | |
Triplex pump water power | kW | 242 | 135 | |
Triplex pump strok | m | 200 | 160 | 152.4 |
Cyclone model | CX200/150 | |||
Cyclone desander working pressure | MPa | 0.2-0.6 | 0-0.6 | |
Cyclone desander working temperature | ℃ | ≤120 | ||
Air float and sink system effective volume | m3 | 15 | 10.5 | 11 |
Air float and sink system water retention time | min | 12 | 12 | 9 |
float oil tank volume | m3 | 2 | 1.3 | - |
Sand collection box volume | m3 | 1.3 | 2.5 | 3.5 |
Gas tank volume | L | 200 | ||
Chassis type | BEIBEN | HONGYAN | SINOTRUK | |
